Key Specifications
| Polarity | Standard |
| Connector Series | 1.85mm |
| Connector Gender | Male |
| Impedance | 50 Ohm |
| Body Style | Straight |
| Attachment Method | Solder |
| Mount Method | None |
| Minimum Frequency | DC |
| Maximum Frequency | 70 GHz |
| Interface Type 1 | ET38325 |
| Interface Type 2 | ET38324 |
| Interface Type 3 | ET38342 |
Description

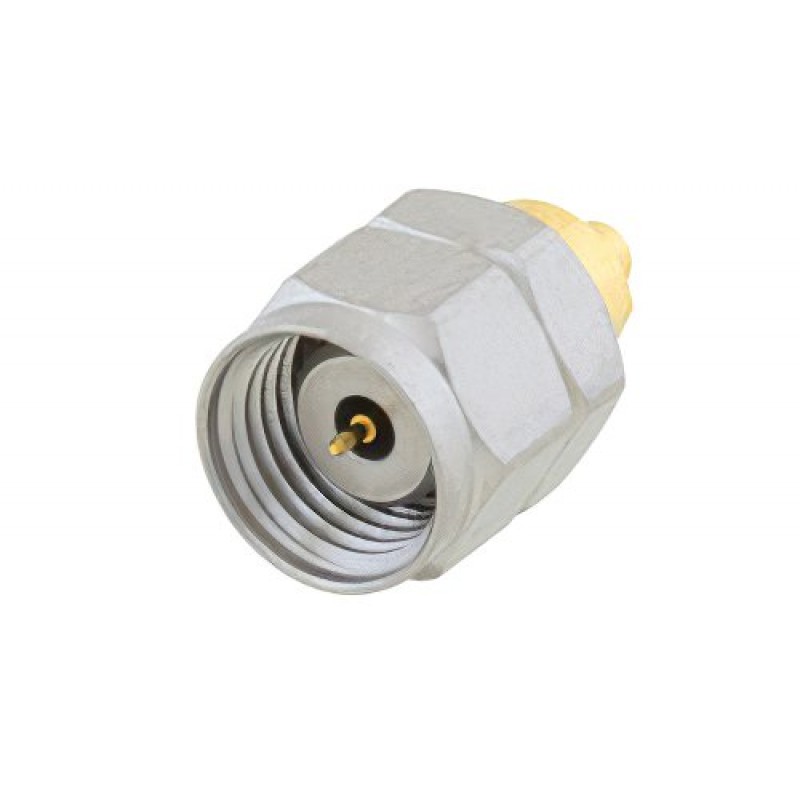

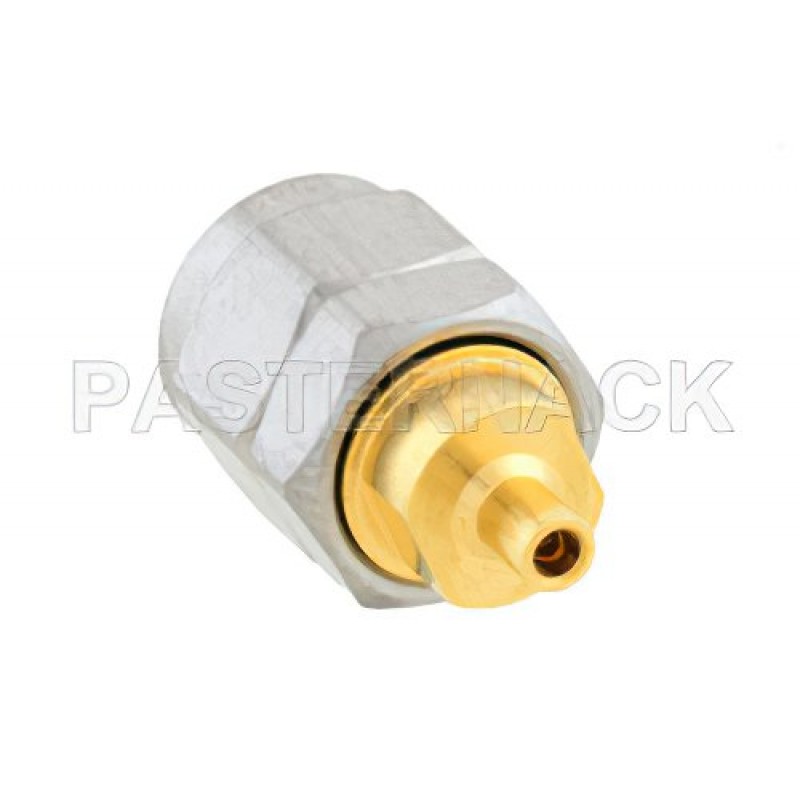

1.85mm Male Connector Solder Attachment for ET38325, ET38324, ET38342
ET09790 1.85mm male coaxial connector has an interface type of ET38325, ET38324, ET38342 and a 50 Ohm impedance. Ebeestock 1.85mm male connector uses shield/contact solder as an attachment method. Our male 1.85mm coaxial connector provides a minimum frequency of DC and a maximum frequency of 70 GHz.
The Ebeestock 1.85mm male coaxial connector has a PEI dielectric type and a VSWR of 1.18. The Ebeestock 1.85mm coaxial connector has a beryllium copper body with gold over nickel plating. Our ET09790 1.85mm connector uses beryllium copper contact. This 1.85mm male coaxial RF connector is RoHS and REACH compliant.
This Ebeestock male 1.85mm connector will ship the same day as purchased. Our 1.85mm male connector is part of over 40,000 RF, microwave and millimeter wave components in stock for worldwide shipment. We also build custom 1.85mm connector cable assemblies that will ship the same day as well.
