| Brand | Superbat |
| Connector Type | U.fl/Ipex Mini Pci to Sma Female Connector |
| Cable Type | Coaxial |
| Compatible Devices | For Wireless Routers Mini PCIe Cards Network PCI WiFi WAN Repeater |
| Color | SMA to U.FL |
| PackageDimensions | 4.84 x 2.6 x 0.43 inches |
| ItemWeight | 0.317 ounces |
Product features
- 2pcs of U.FL to SMA Female Pigtail Extension Cable | 6" low loss cable give you the flexibility you need. | can be used for small devices, space saving.

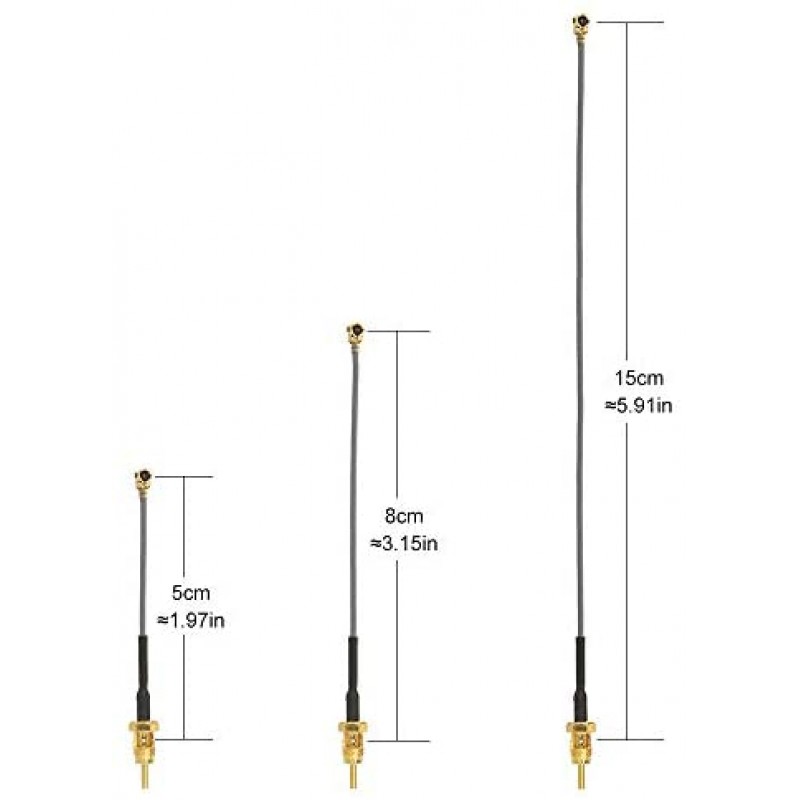

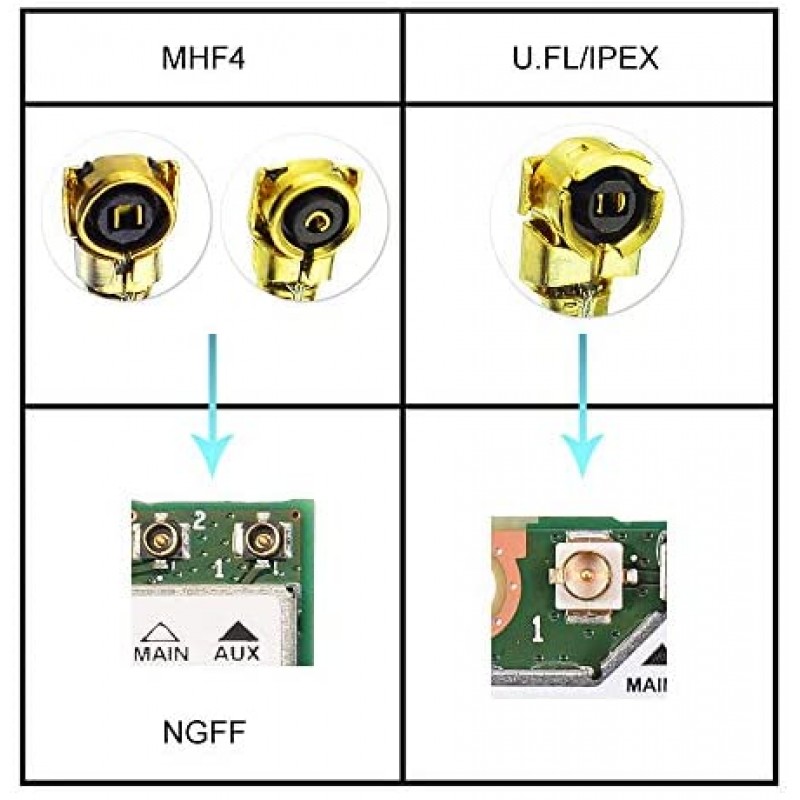

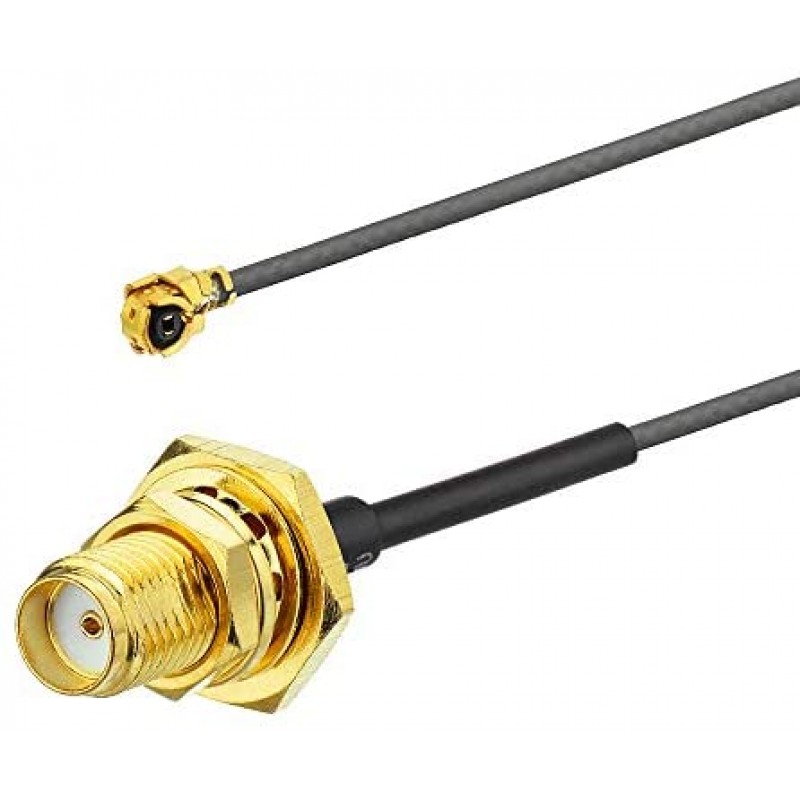

- Connector 1：SMA Female Connector 2：U.FL(IPX/IPEX) | length: 15cm | Impedance: 50 Ohm, Metall: copper
- 1.13mm mini-coaxial cable: This is a very thin and flexible cable, with a black jacket. When connecting U.FL connector to a jack on a miniPCI card or board, often the tight space requires the use of 1.13mm cable, because it is very thin and flexible.
- This antenna cable is compliant for all types of wireless antennas, including wireless / WiFi networks, Mobile phones, WLAN, PDA, GPS, electronic measuring instrument, Mini PCI, BlueTooth, ZigBee 900MHz, 2.4GHz & 5GHz applications, as well as any other frequency between 0 and 18GHz.
- Never worry about any security problems. We are confident in the quality of our Cable and willing to provide 1 MONTHS Replacement Warranty and 100% Satisfaction Guarantee. If you unfortunately get a defective one, please contact our customer support.
Product Description
Application:
- frequencies from the lowest (DC) up to 18GHz: This antenna cable is compliant for all types of wireless antennas, including wireless / WiFi networks, Mobile phones, WLAN, PDA, GPS, electronic measuring instrument, Mini PCI, BlueTooth, ZigBee, Cellular voice & data, and WiMax: 802.11N, AC, G, A, B. 900MHz, 2.4GHz & 5GHz applications, as well as any other frequency between 0 and 18GHz.
- Good for Mini PCI-e Wireless WLAN Wifi Card:Ar9462 Ar5b22 Wb222 Intel Network 6235AN AC 3160 AC31603160HMW AR5418 AR5008 AR5BXB72 7260 7260HMW
