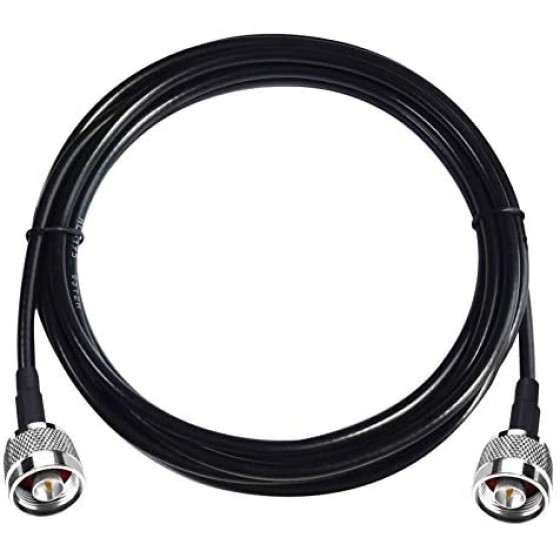

N Male to N Male Low Loss Coax Cable LMR200 Pigtail Jumper 50 Ohm 10ft/3m for Antenna, Amplifier, WiFi Router, Repeater, Satellite Dish

0 reviews

RO.5.00

Qty

- +

Total RO.5.00

Mobile

Product features

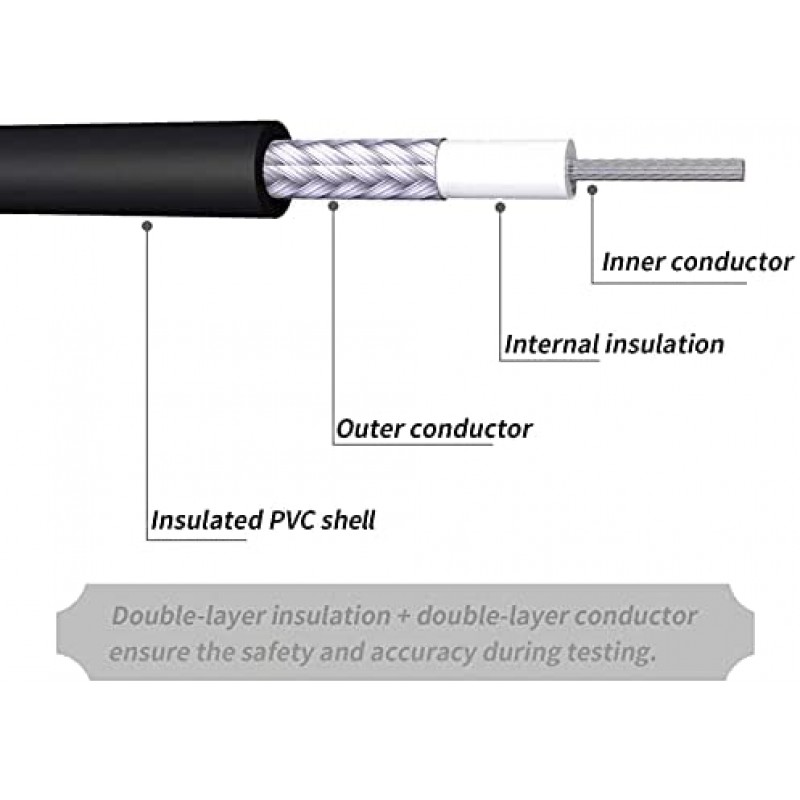

Low loss coax cables are made of 18AWG copper wires, 2.95mm dielectric insulator, 144 * 0.12mm tinned copper braid shield(over 95% coverage) and 5.0mm outer pvc jacket.

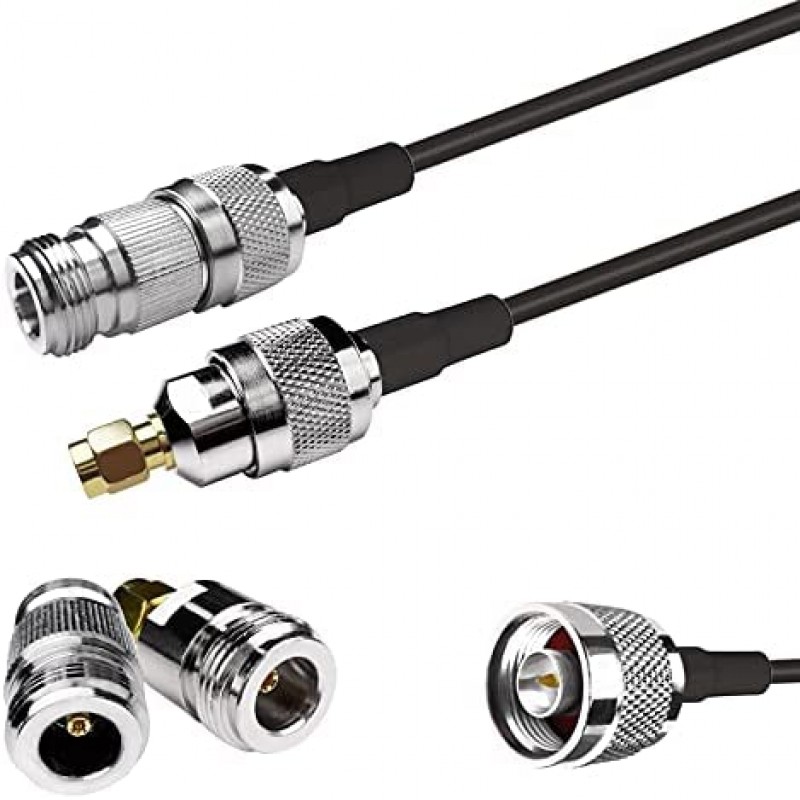

Both connectors are made of copper and gold-plated contacts, which can achieve better signal transmission and minimal attenuation.
Coax cables have weatherproof connectors, and both ends are heat-shrinkable, so it can be used outdoors. It has good performance in 5GHz and 2.4GHz applications. Impedance: 50 Ohm.

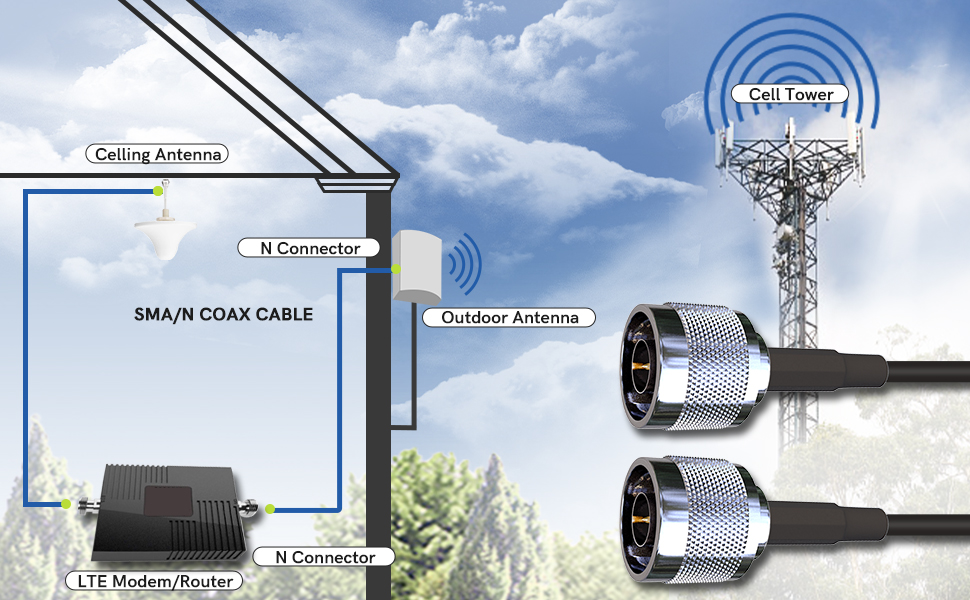

Perfect for working with amplifier, antenna, router, lightning arrestor, AMP, ham radio, satellite dish, repeater, etc. Compatible with all 50 Ohm N connector equipment like modems and routers.
Package include: 1 x LMR200 50 Ohm N Male to N Male Coaxial Cable. Length: 10ft/3m.

Description:

N Type Male to N Male Low Loss Indoor Outdoor Jumper Extension Cable

Used to connect N-Type equipment such as modem and routers to N-Style antennas, receivers, meters, radio transmitters and WIFI signal repeater.

Specification:

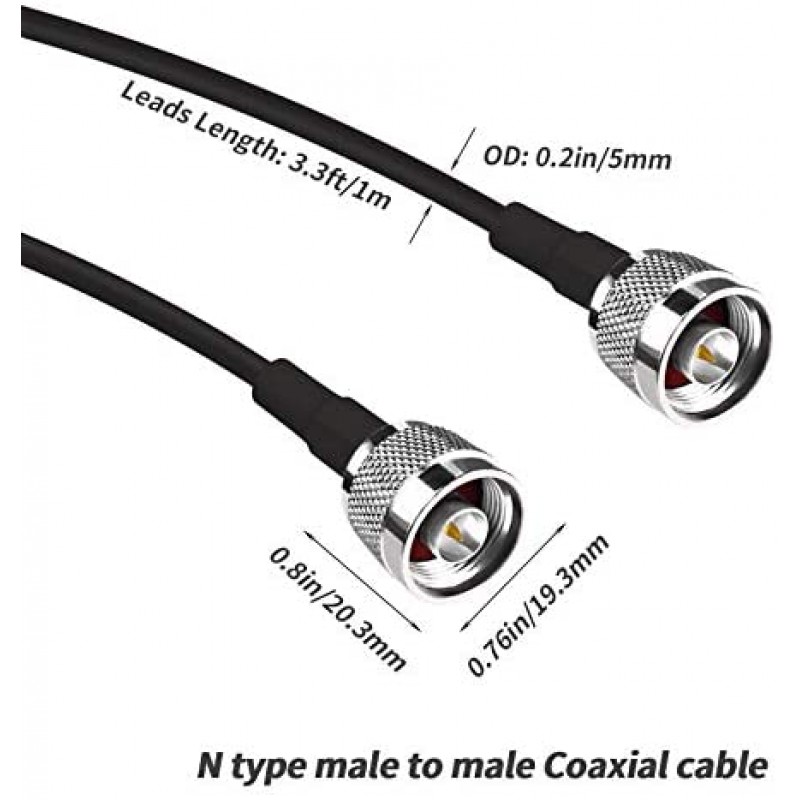

Connector A: N Type Male

Connector B: N Type Male

Impedance: 50 Ohm

Coax: LMR200

Low loss: <3.8db

Low VSWR: <1.15

Min. Bend Radius(Install): 2in

Max.Operating Frequency: 6000MHz

Maximum tensile strength: 21.3Ib

Application:

Perfect for working with amplifier, antenna, router, lightning arrestor, AMP, ham radio, satellite dish, repeater, etc.
Compatible with all 50 Ohm N connector equipment like modems and routers from Cisco, Digi, Cradlepoint, Ebeestock, Pepwave, Sierra Wireless, Sixnet/Red Lion.
