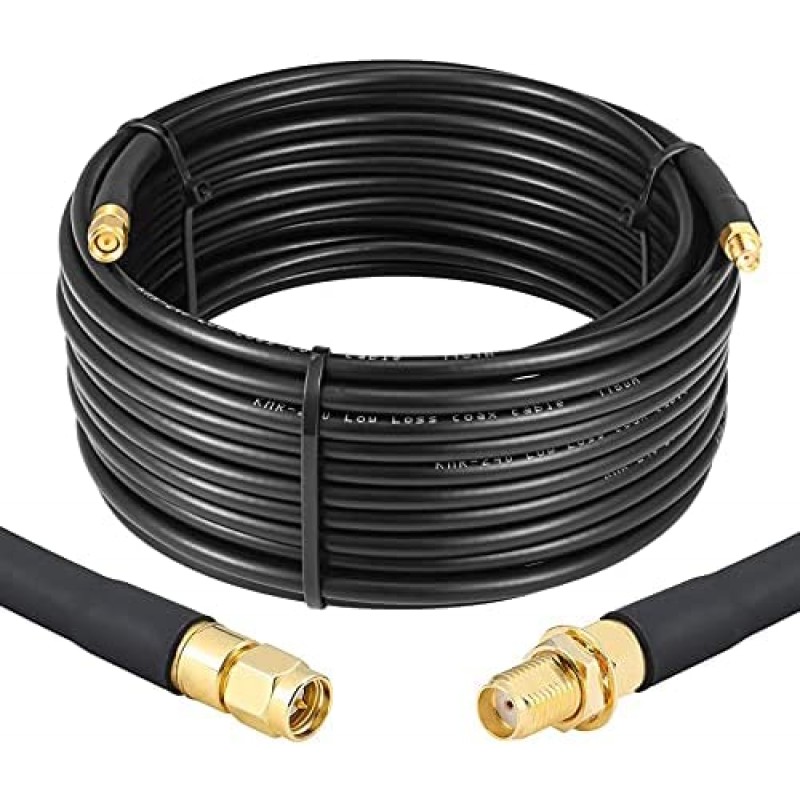

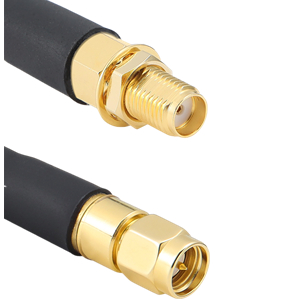

RF 35ft SMA Male to SMA Female Coax Cable 50 Ohm Low Loss KMR240 SMA Connectors Pure Copper Coaxial Cable

0 reviews
$32.99
  • Brand: Ebeestock
  • Product Code: EBST0001926
  • Availability: In Stock
- +
Total $32.99

Mobile

Product information

Brand XRDS -RF
Connector Type Coaxial
Cable Type Coaxial
Compatible Devices Television, Router, Modem
Color Black

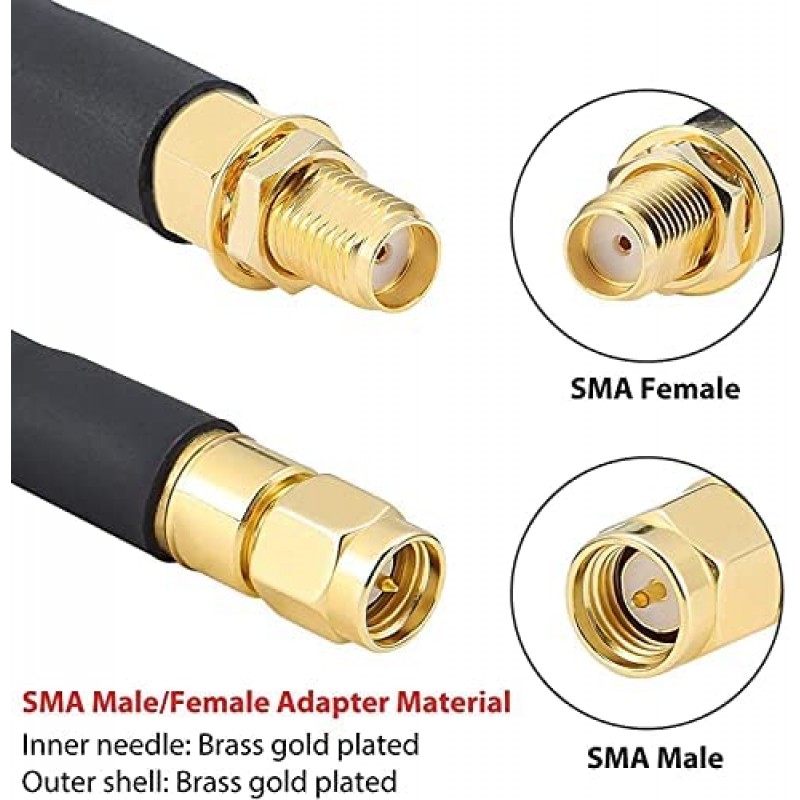

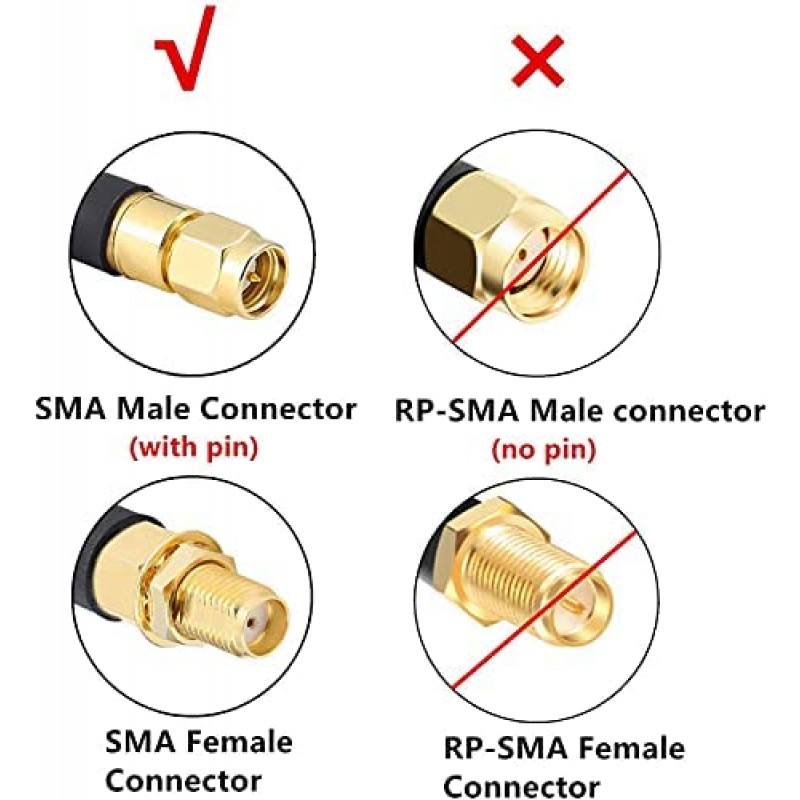

Connector Gender Male-to-Female

Product features

Product details

  • Is Discontinued By Manufacturer ‏ : ‎ No
  • Package Dimensions ‏ : ‎ 10.55 x 7.95 x 2.52 inches; 1.34 Pounds
  • Item model number ‏ : ‎ KMR240 SMA Male to Female 35FT
  • Date First Available ‏ : ‎ March 12, 2021
  • Manufacturer ‏ : ‎ XRDS -RF

Product Description

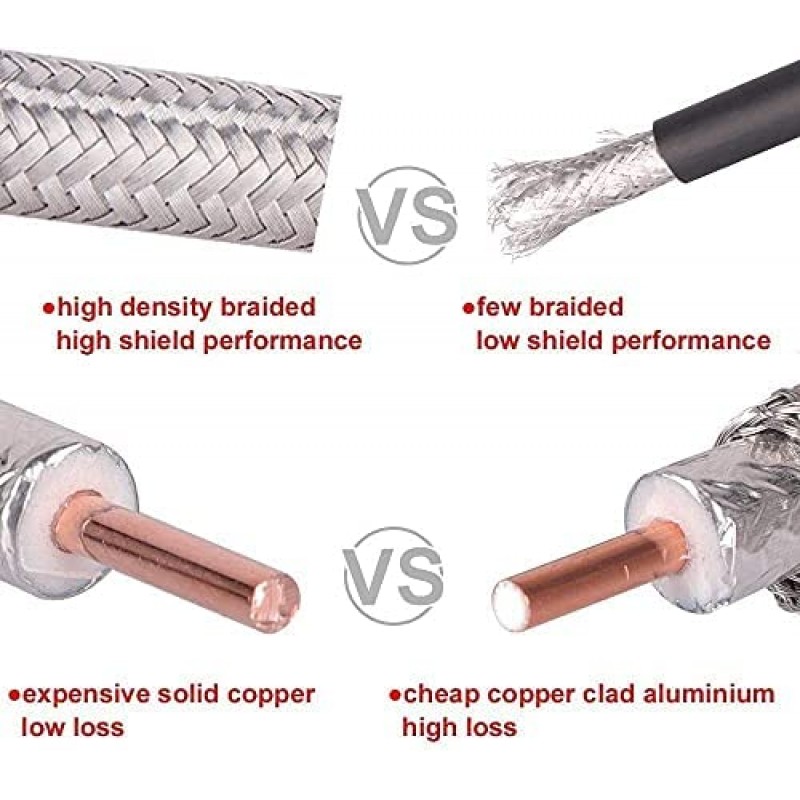

XRDS-RF 50 Ohm SMA Male to SMA Female Coaxial Cable is made of low loss KMR240 pure solid copper coax cable.

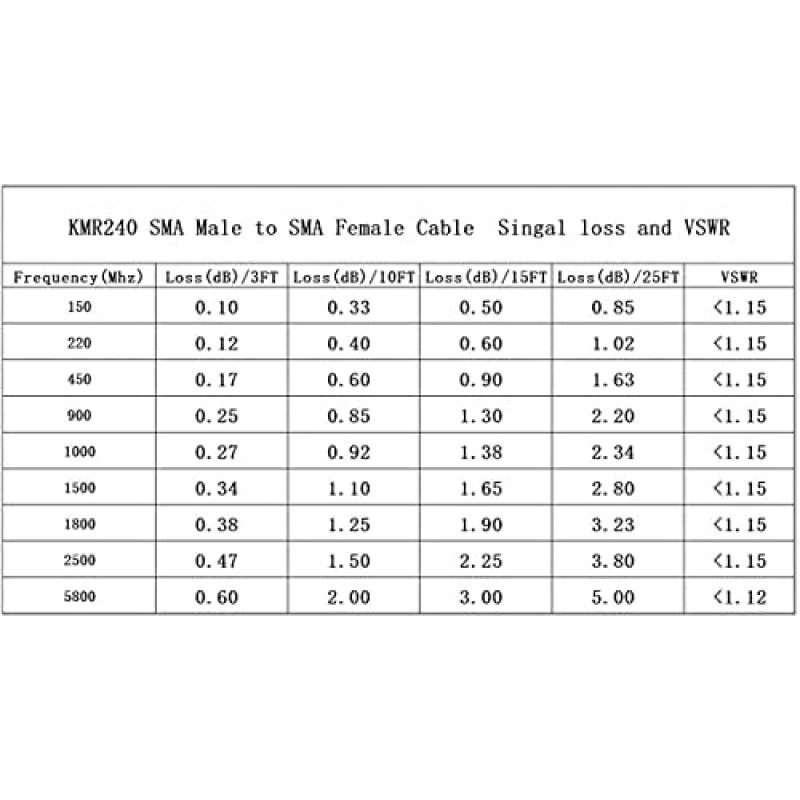

Product Specification：

Characteristic Impedance 50ohm
6GHZ VSWR ≤ 1.15
3GHZ Attenuation ≤ 2.1
6GHZ Attenuation ≤ 3.3
Diameter 0.24 Inch
Min. Bend Radius(Install) 2 inch
Max.Operating Frequency 6000MHz
Operating Temp -40 to +80℃
Maximum tensile strength 21.3Ib

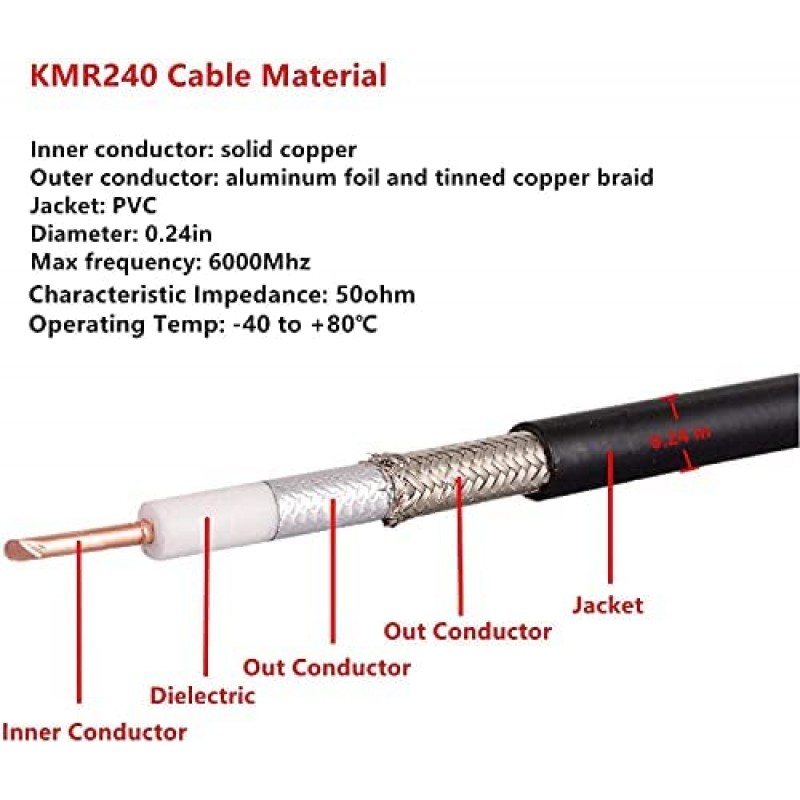

KMR240 Features:

  • KMR240 SMA-male to female type connector cable, holding the shield at a uniform distance from the central conductor, the space between the two is filled with a dielectric designed to maintain the proper spacing between conductor and shielding to assure maximum signal transmission and lowest loss.
  • KMR240 ham radio antenna shielded cable can be bent and moderately twisted without negative effects, and it can be strapped to conductive supports without inducing signal interference.

The box contains:

1 x 35ft SMA Male to Female Low Loss Coaxial Cable (Not for TV)
